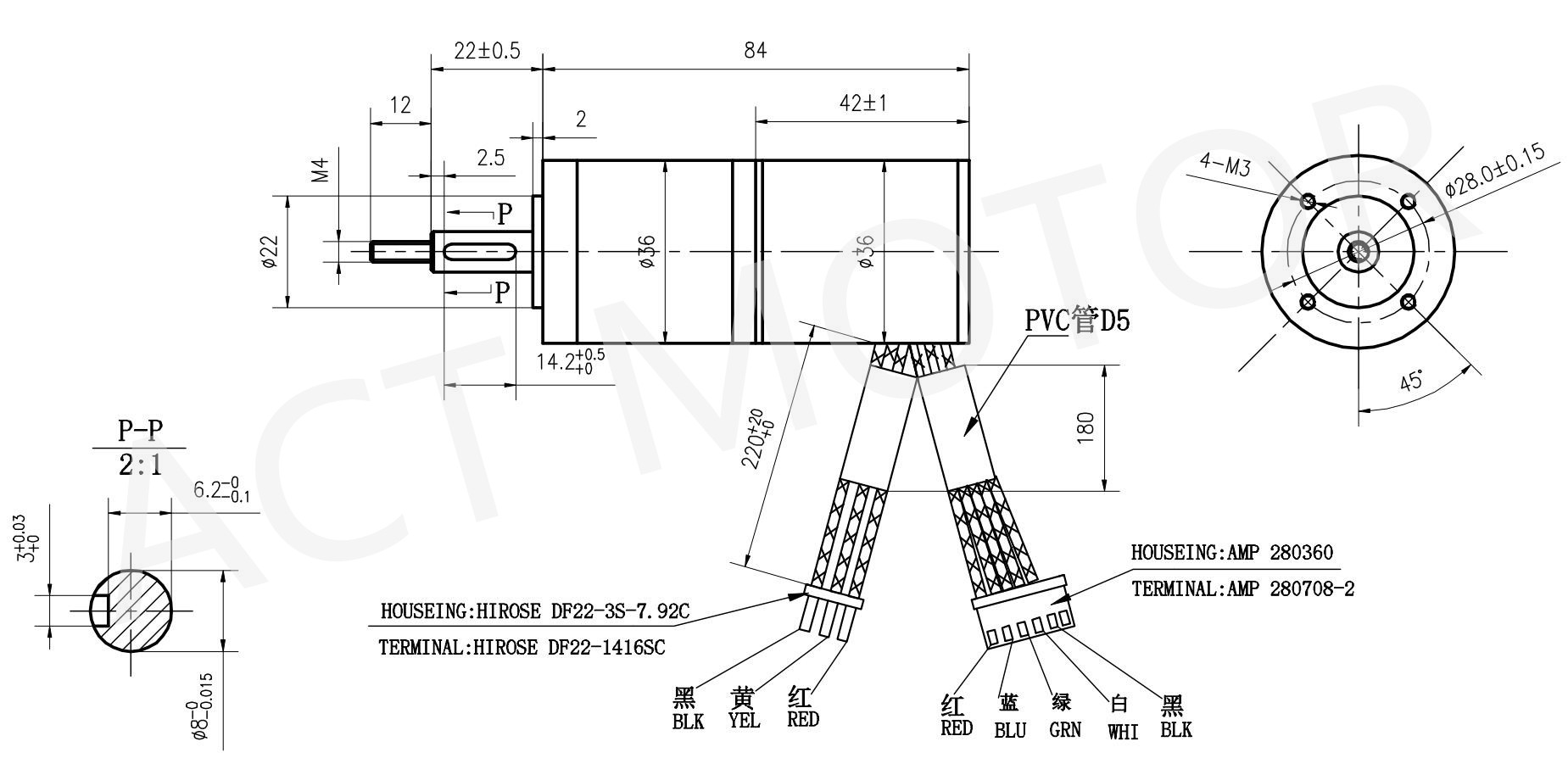

Brushless motor with gearbox, 36BL01 AG76, used for Robot Lawn Mower
Specification:
No. Of Phases: 3
Nominal Voltage: 24VDC
Resistance: 2.4 OHMS
No Load Speed: 8900RPM
No Load Current:0.5 Amps
Rated Torque: 0.03N-m
Rated Speed:7100±200RPM
Back EMF Constant:1.6 V/kRPM
Torque Constant:0.015N-m/A
Motor Specifications With Planetary Gear Box
Rated Torque: 1.5N.m
Rated Speed: 94 RPM
Ratio:76:1
